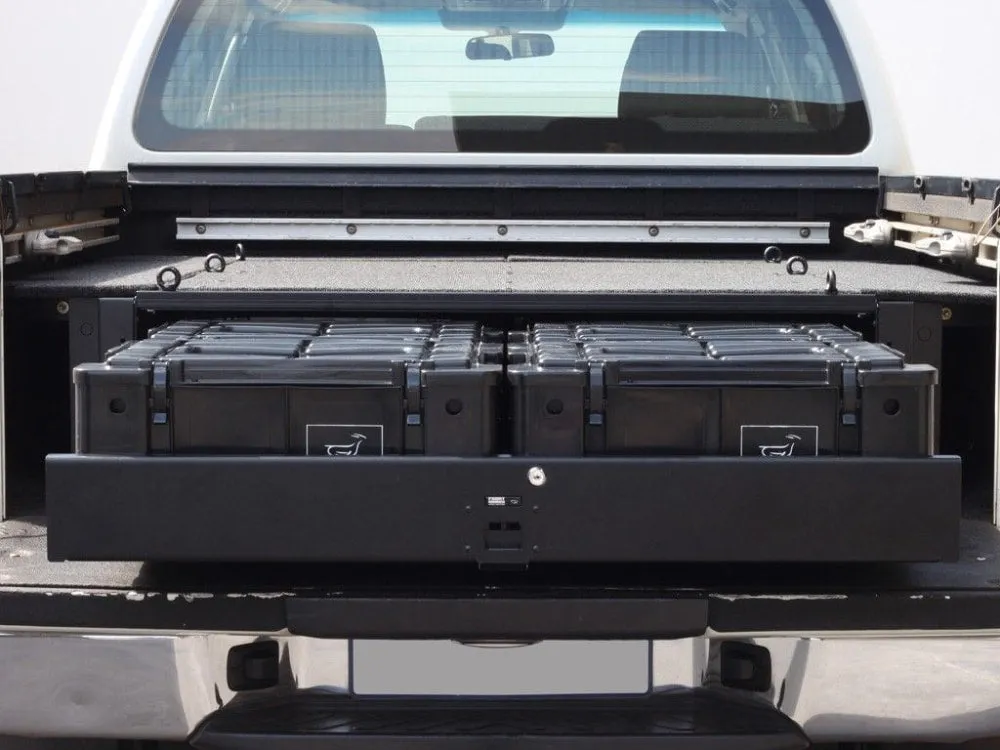

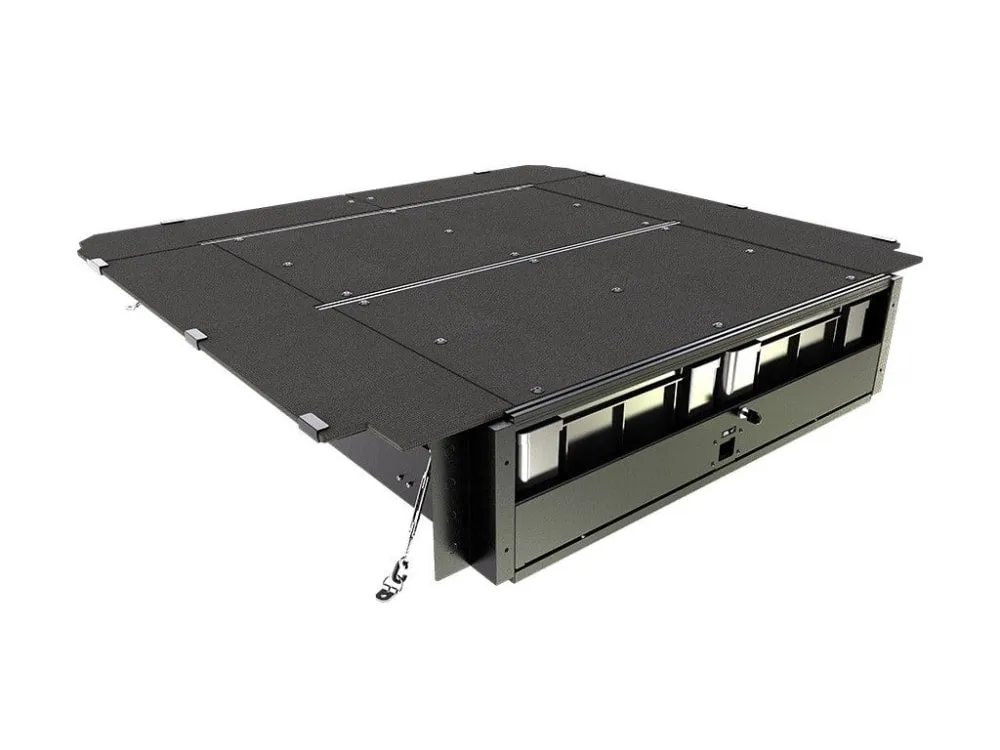

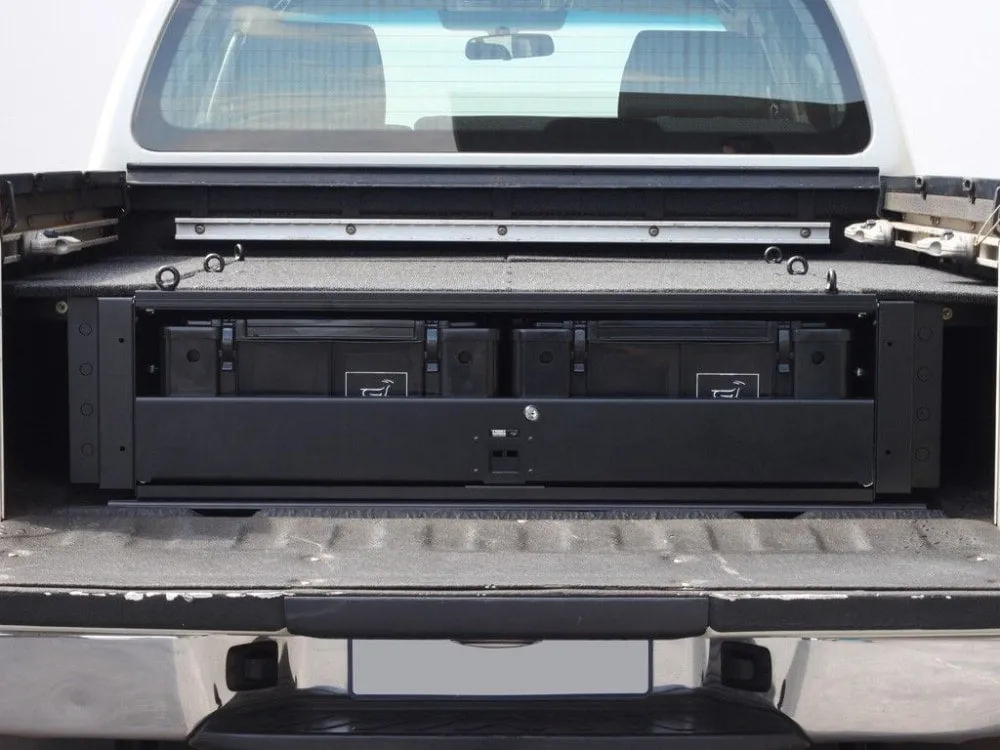

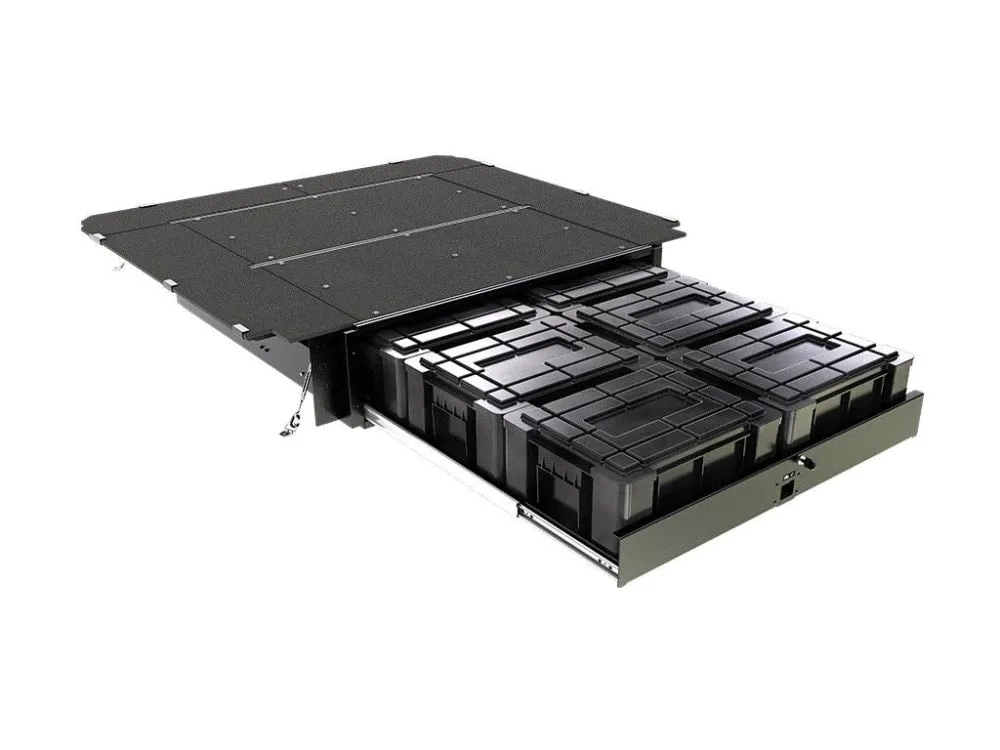

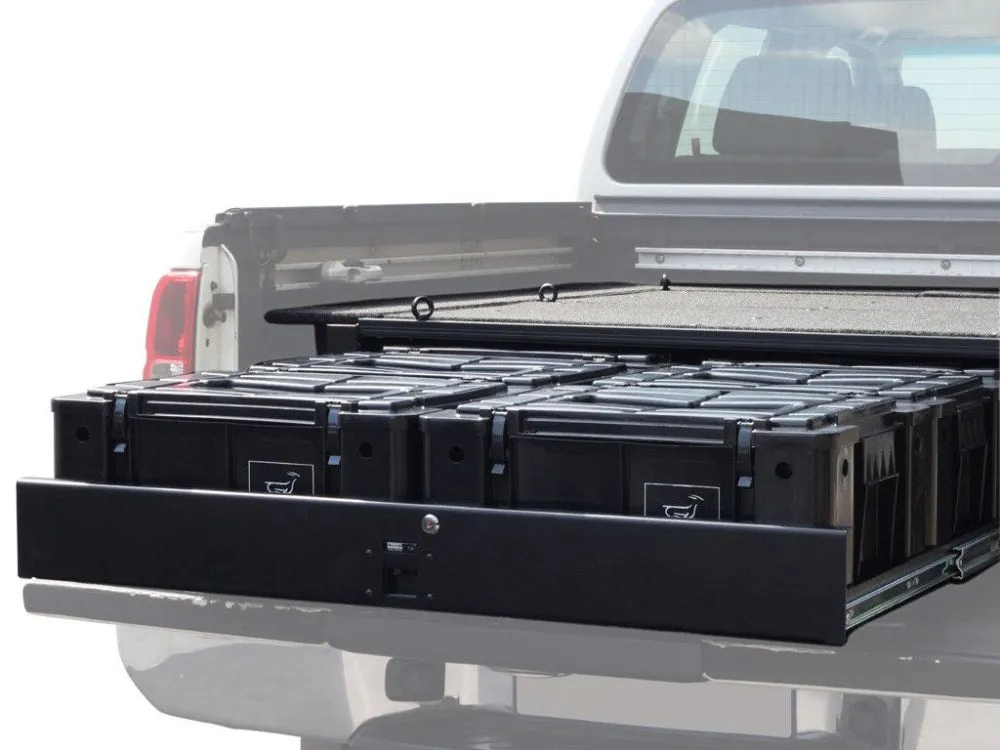

Nissan Navara D40 DC Wolf Pack Drawer Kit by Front Runner

Storing, organizing, and moving gear in Nissan Navara’s just got easier.

This Wolf Pack based lockable drawer system provides a comprehensive and practical storage solution for easily transporting stored items between a vehicle and the campsite, garage, store, etc. Designed specifically to fit the contours of the Nissan Navara. Engineered tough for both on and off-road conditions.

This removable box drawer kit includes 1 drawer slide, 6 , locks and keys, 3 tie down rails, 6 tie down rings, deck completion set, face completion set, brackets, all necessary installation hardware, and detailed fitment instructions.

, the heart of this modular storage system, are perfectly sized for kitchen support, dried goods, tools, camera gear, toiletries, even clothes.

• These clip-to-close, stackable and durable storage containers are made from black, high strength plastic and have integrated grips for easy carrying.
• This Front Runner Removable Box Drawer Kit can be easily installed in minutes by attaching the supplied C-hooks and turnbuckles to the vehicle’s existing mounting points. Removing the drawer is just as easy.
• Insert in the Wolf Pack as an adjustable compartment padded liner to further protect camera gear, kitchenware and other fragile items. ( sold separately).
• 113kg per drawer load carrying capacity.
• Hold open feature: drawer “locks” open while parked on uneven surfaces.
• High-strength bearing slides allows the drawer to extend nearly 100% from the anchored base.
• The push-to-latch mechanism is lockable. Keys included.
• Provide peace of mind and security by locking away important support gear.
• The flat deck incorporates three cargo attachment channels and 6.
• Customize your own storage configurations. Stack and secure luggage, , , aluminum boxes and other storage containers to the top deck using or other straps.
• The deck above the drawer can also be used to mount .
• The left side Faceplate has 4 pre-cut knock-outs for adding electrical panel socket inserts. The right side faceplate has 2 pre-cut knock-outs for water fittings such as the Stainless Steel Water Tank for Ute Drawer System / 52l (sold separately).
• The side and rear decks are easily removable creating storage space between the drawers and vehicle for a variety of items such as tools, jumper cables, tow ropes, diving snorkels, masks, fins, kindling, barbeque skewers, etc.
• The deck is lined with a durable, UV resistant nylon pile carpet.
• The nylon carpet surface creates resiliency for securing cargo while insulating against noise and vibration.
• The drawer is finished with the same durable black powder coating as the and other Front Runner products.
• This storage system is designed for interior use or in a pick-up load bed with a canopy, camper shell, or other style bed / load bed cover.

Note: The Deck Completion Set for this drawer kit requires modification when installed with an existing plastic load liner.

Specifications

Consists of:

• 1 x Base Drawer unit (SSWO008)
• 1 x Push to close latch with 2 keys
• 3 x Accessory Channels
• 6 x Tie Down Rings
• 6 x Low Lid Wolf Packs
• 1 x Drawer System Wing Set
• 1 x Nissan Navara Deck Completion Set
• Installation hardware
• Fitting Instruction

Materials used:

• Aluminum - Accessory Channels and Sub Frame
• Black powder coated steel - Frame
• Carpet and Laminated plywood - Top Deck and Deck Set

Product Dimensions:

Overall Dimensions:

• 1428mm L x 1591mm W x 310mm H

Outer Drawer Dimensions:

• 1083mm W x 1252mm D x 310mm H

Inner Drawer Dimensions:

• 1197mm L x 1031mm W x 230mm H

Open Drawer Dimensions:

• 2163mm L x 1083mm W x 310mm H

Weight:

• 79.7kg

Load Rating:

• 113kg

Special Notes:

• Items can be secured to the top deck using the 6 supplied Tie Down Rings and fitting them accordingly to the 3 accessory channels on the top deck. Drawer has a hold open feature.
